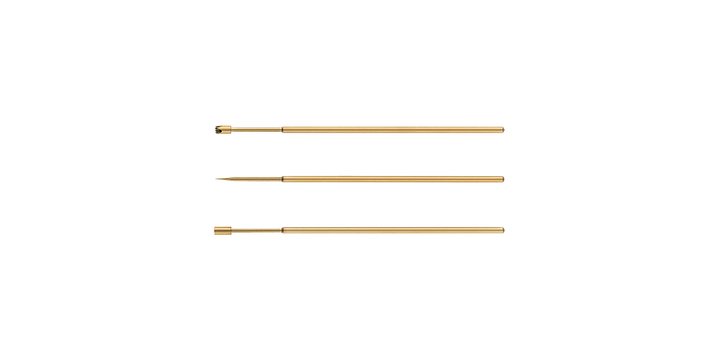

Misumi C-NP604-B NP604 Series Contact Probes Min Pitch2.54mm, Stroke 4.0mm
Specifications
Please select at least one specification below.
Type
Contact Probe
Plunger OD
1.9
mm
Initial Spring Pressure
10 gf
Plunger Tip Shape
B Type
Barrel Receptacle OD
1.37
mm
Barrel Receptacle Length
18.5
mm
Plunger Length
6
mm
Full Stroke
4
mm
Plunger Material
C1730B
Barrel Receptacle Material
Phosphor Bronze
2/3 Stroke Spring Pressure
110 gf
This spec is not available in the specification table.
Min. Mounting Pitch
2.54
mm
This spec is not available in the specification table.
Allowable Current
3
A
This spec is not available in the specification table.
Resistance
50 mΩ
This spec is not available in the specification table.
Product Description
S$ 40.70
(exc. GST)
S$ 44.36
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 40.70 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
