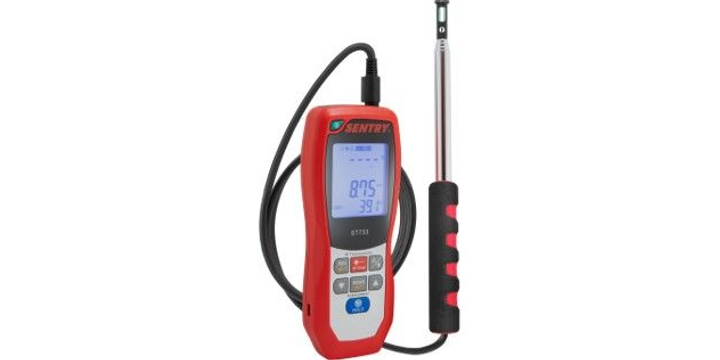

Ir Thermo-Anemometer
Brand:
OEM
Model:
ST733
Technical Data Sheets
Product Description

Features
- Simultaneous display of air velocity plus ambient temp
- Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity
- Wide range measurement of air velocity
- Multi-Functions for measurement ; m/s, km/h, ft/min, knots, mile/h. CMM, CFM
- Infrared thermometer measures remote surface temperature to 537degC with 30:1 distance to spot ratio
- Auto power off after 10 minutes of idle

Specification

Measurement
Air Velocity: m/s, ft/min, km/h, mile/h,
knots Air Flow: CMM(m³/min), CFM(ft³/min)
Temperature: °C and °F

Air Velocity Range
0~40m/s, 0~7,874ft/min, 0~144km/h,
0~89.5mile/h,0~77.75knots Air Temperature: 0~70°C (32~158°F )

Air Velocity Resolution
0.01 m/s, 0.1 ft/min, 0.01 km/h,
0.01 mile/h, 0.01 knots Air Temperature: 0.1°C (0.1°F)

Air Velocity Accuracy
±(0.03+Reading x3%)m/s, ±(5.9+Reading x3%)ft/min,
±(0.11+Reading x3%)km/h, ±(0.07+Reading x3%)mile/h,
±(0.06+Reading x3%)knots Air Temperature: ± 0.8°C (1.5°F)

Infrared Thermometer Range
-32.0~537.5℃ (-25.6~999.5℉)

Infrared Thermometer Accuracy
32.0~-20℃ (-25.6 ~ -4 ℉) : ±3℃ (±5.4℉),
20.0~100.0℃(-4 ~ 212 ℉): ±2℃ (±3.6℉),
100 ~ 537.5℃ (212~999.5℉): ±2%

Infrared Thermometer Resolution
0.1℃ / 0.1℉

Distance / Spot Ratio
30 : 1

Emissivity
Adjustable 0.1~1.0

Sample Time
Approx. 0.5 sec.

Dimension
184 x 70 x 40mm (7.24"x2.75"x1.57")
Telescope probe : approx. 1800mm (70.8”) include wire rod.

Weight
Approx. 310g

Accessories
9V Battery, Instruction manual, AC Adaptor, USB cable, software, carrying case, sleeve



S$ 530.00
(exc. GST)
S$ 577.70
(inc. GST)
