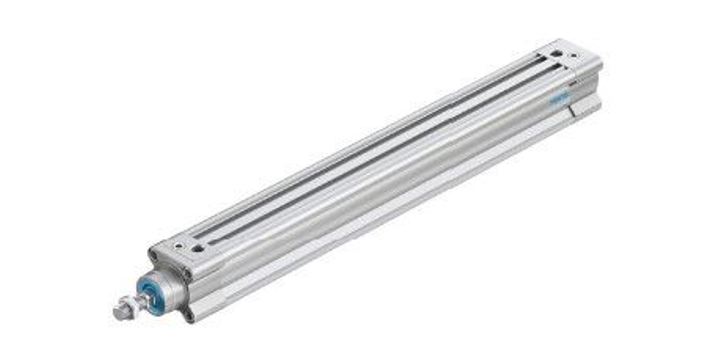

Festo Air Cylinder
| Brand: | Festo |
| Model: | DSBC-63-500-PPVA-N3 |
Product Description
- Stroke500 mm
- Piston diameter63 mm
- Piston rod threadM16x1.5
- CushioningPneumatic cushioning, adjustable at both ends
- Mounting positionoptional
- Conforms to standardISO 15552
- Piston-rod endMale thread
- DesignPiston Piston rod Profile barrel
- Position detectionVia proximity switch
- Symbol00991235
- VariantsPiston rod at one end
- Operating pressure0.04 MPa ... 1.2 MPa
- Operating pressure0.4 bar ... 12 bar
- Mode of operationDouble-acting
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions1.3 J
- Cushioning length22 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870 N
- Moving mass for 0 mm stroke430 g
- Additional moving mass per 10 mm stroke25 g
- Basic weight for 0 mm stroke1740 g
- Additional weight per 10 mm stroke62 g
- Type of mountingEither: Via female thread With accessories
- Pneumatic connectionG3/8
- Note on materialsRoHS-compliant
- Material coverDie-cast aluminium, coated
- Material piston sealTPE-U(PU)
- Material pistonWrought aluminium alloy
- Material piston rodHigh-alloy steel
- Material piston rod wiperTPE-U(PU)
- Buffer seal materialTPE-U(PU)
- Cushioning piston materialPOM
- Material cylinder barrelSmooth-anodised wrought aluminium alloy
- Material nutGalvanised steel
- Material bearingPOM
- Material collar screwsGalvanised steel
S$ 375.00
(exc. GST)
S$ 408.75
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 375.00 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
