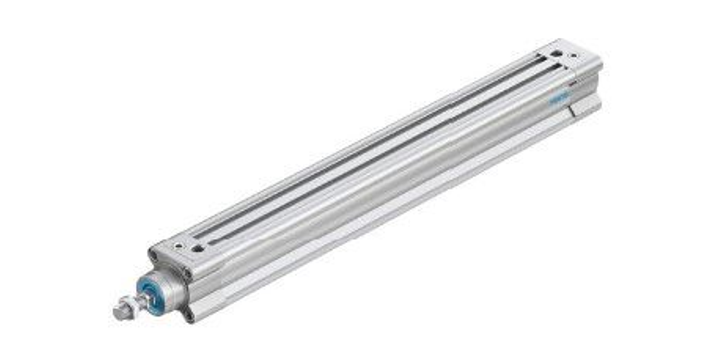

Festo Air Cylinder
| Brand: | Festo |
| Model: | DSBC-40-200-PPVA-N3 |
Product Description
- Stroke200 mm
- Piston diameter40 mm
- Piston rod threadM12x1.25
- Cushioning Pneumatic cushioning, adjustable at both ends
- Mounting position optional
- Conforms to standardI SO 15552
- Piston-rod end Male thread
- Design Piston Piston rod Profile barrel
- Position detection Via proximity switch
- Symbol00991235
- Variants Piston rod at one end
- Operating pressure0.06 MPa ... 1.2 MPa
- Operating pressure0.6 bar ... 12 bar
- Mode of operation Double-acting
- Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Cleanroom class Class 6 according to ISO 14644-1
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions0.7 J
- Cushioning length19 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
- Moving mass for 0 mm stroke205 g
- Additional moving mass per 10 mm stroke16 g
- Basic weight for 0 mm stroke740 g
- Additional weight per 10 mm stroke37 g
- Type of mounting Either: Via female thread With accessories
- Pneumatic connectionG1/4
- Note on materials RoHS-compliant
- Material cover Die-cast aluminium, coated
- Material piston seal TPE-U(PU)
- Material piston Wrought aluminium alloy
- Material piston rod High-alloy steel
- Material piston rod wiper TPE-U(PU)
- Buffer seal material TPE-U(PU)
- Cushioning piston material POM
- Material cylinder barrel Smooth-anodised wrought aluminium alloy
- Material nut Galvanised steel
- Material bearing POM
- Material collar screws Galvanised steel
S$ 235.00
(exc. GST)
S$ 256.15
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 235.00 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
