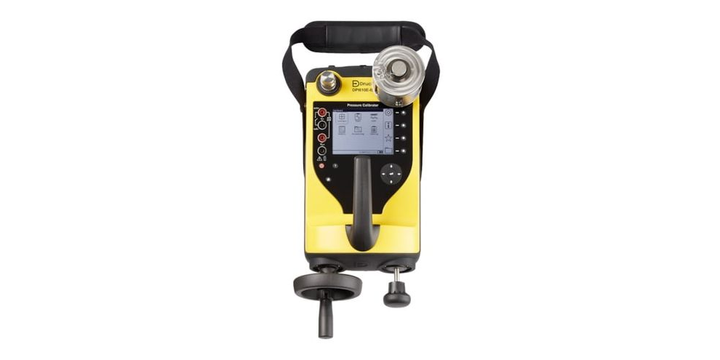

Druck Handheld Pressure Calibrator (hydraulic Hazardous Area)
Druck Handheld Pressure Calibrator (hydraulic Hazardous Area)
Technical Data Sheets
Product Description

Model: DPI610E-SHC Hydraulic hazardous area
Pressure Range:
- 70 bar/1000 psi/7 MPa
- 100 bar/1500 psi/10 MPa
- 135 bar/2000 psi/13.5 MPa
- 200 bar/3000 psi/20 MPa
- 350 bar/5000 psi/35 MPa
- 700 bar/10000 psi/70 MPa
- 1000 bar/15000 psi/100 MPa
c/w 1m Hose

The DPI610E handheld pressure calibrator is the latest and the sixth generation of the DPI600 family. The DPI610E combines effortless pressure measurement and generation, signal measurement and loop power with significantly improved pump capabilities and a powerful touch and button user interface.

With a robust design, the unit has been engineered for instrument technicians, using input from those working in the field. It is an ideal solution to your test and calibration application.

Features
- The complete pressure calibration tool provides pressure:
> Vacuum to 35 bar/500 psi/3.5 MPa pneumatic pressures with inbuilt barometer for accurate pseudo pressure measurements
> Up to 1000 bar/15000 psi/100 MPa hydraulic pressures
- HART as standard on all versions
- Best in class pressure accuracy: Total 1 year uncertainty down to 0.025% full scale (FS) over temperature range of -10°C to +50°C - Integral calibration record with calibration due countdown
- Robust, handheld design with backlit high-contrast display
- Hazardous area (Intrinsically safe) version available
- Optional remote plug and play pressure sensor (PM700E) and Resistance Temperature Detector (RTD-INTERFACE)
- Minimise in-the-field leaks with quick-fit pressure adapters and hoses
- Full data logging and local documenting capabilities included

S$ 14,400.00
(exc. GST)
S$ 15,696.00
(inc. GST)
