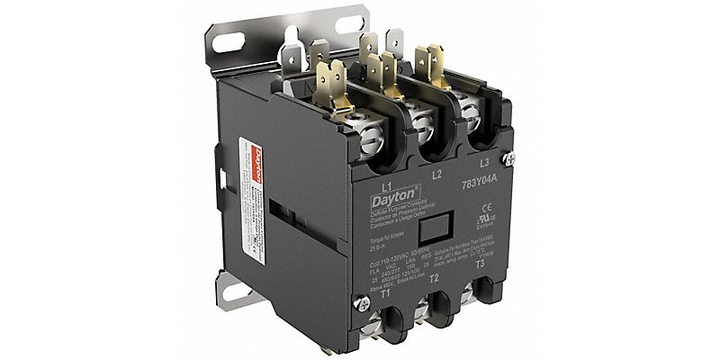

Dayton 783Y04 Defpurposemagcontactor 120VAC 3P 25A
Specifications
Please select at least one specification below.
Poles Description
3
Terminal Type
Box Lug
Full Load Current - Inductive
25 A
This spec is not available in the specification table.
Nominal Coil Voltage @ 60Hz
120 V AC
This spec is not available in the specification table.
NEMA Enclosure Rating
No Enclosure
This spec is not available in the specification table.
Reversing Capability
Non-Reversing
This spec is not available in the specification table.
Horsepower @ Three Phase - 240V AC
10 hp
This spec is not available in the specification table.
Horsepower @ Three Phase - 480V AC
15 hp
This spec is not available in the specification table.
Horsepower @ Single Phase - 240V AC
5 hp
This spec is not available in the specification table.
Full Load Current - Resistive
35 A
This spec is not available in the specification table.
Contactor Frame Size
Standard
This spec is not available in the specification table.
Product Description
S$ 185.12
(exc. GST)
S$ 201.78
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 92.56 |
Quantity:
EA
MOQ of 2 EA
Bundle of 1 EA
Lead time of 8 working days required.
Item will be ready to dispatch within the lead time specified.
