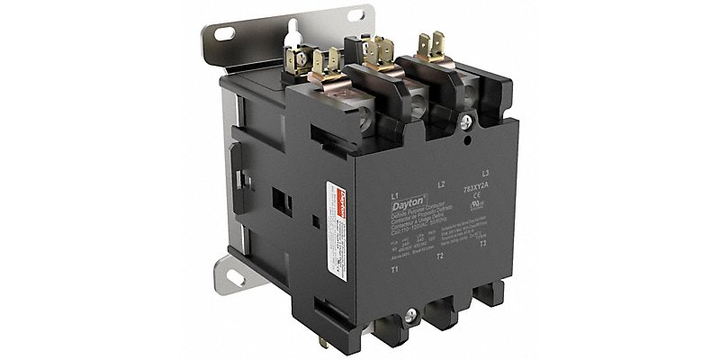

Dayton 783XY2 Defpurposemagcontactor 120VAC 3P 90A
Specifications
Please select at least one specification below.
Poles Description
3
Terminal Type
Box Lug
Full Load Current - Inductive
90 A
This spec is not available in the specification table.
Nominal Coil Voltage @ 60Hz
120 V AC
This spec is not available in the specification table.
NEMA Enclosure Rating
No Enclosure
This spec is not available in the specification table.
Reversing Capability
Non-Reversing
This spec is not available in the specification table.
Horsepower @ Three Phase - 240V AC
30 hp
This spec is not available in the specification table.
Horsepower @ Three Phase - 480V AC
50 hp
This spec is not available in the specification table.
Horsepower @ Single Phase - 240V AC
20 hp
This spec is not available in the specification table.
Full Load Current - Resistive
120 A
This spec is not available in the specification table.
Contactor Frame Size
Standard
This spec is not available in the specification table.
Product Description
S$ 376.82
(exc. GST)
S$ 410.73
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 376.82 |
Quantity:
EA
Lead time of 8 working days required.
Item will be ready to dispatch within the lead time specified.
