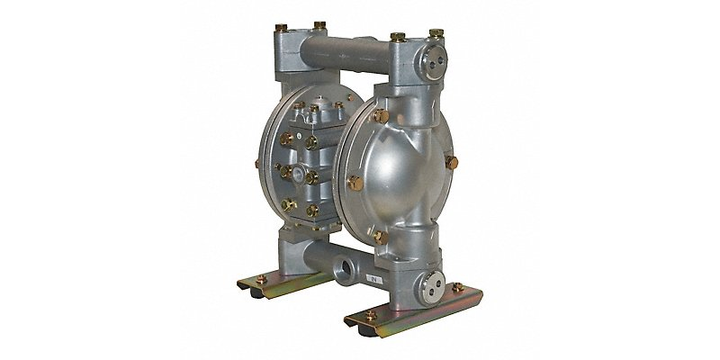

Dayton 6PY48 Dbldiaphpmp Fnpt TPV/316 Sstl 3/8 49gpm
Dayton 6PY48 Dbldiaphpmp Fnpt TPV/316 Sstl 3/8 49gpm
Brand:
DAYTON
Model:
6PY48
Specifications
infotip-icon
View other Diaphragm Pumps dimensions or variations
Please select at least one specification below.
Valve Material
EPDM
Solid Diameter (Maximum)
0.19"
Pump Operation Type
Air
Operating Pressure (Maximum)
100 psi
Diaphragm Material
Santoprene
Flow Rate (Maximum)
49 gpm
Media Temperature (Maximum)
212°F
Air Consumption (Maximum)
55 scfm
Manifold Connection
Single Port
This spec is not available in the specification table.
Valve Type
Ball
This spec is not available in the specification table.
Fluid Connection Size
1"
This spec is not available in the specification table.
Check Seat Material
316 Stainless Steel
This spec is not available in the specification table.
Pump Assembly Type
Bolt
This spec is not available in the specification table.
Max. Flow Rate Range
25 to 49.9 gpm
This spec is not available in the specification table.
Housing Material
316 Stainless Steel
This spec is not available in the specification table.
Fluid Connection Type
NPT
This spec is not available in the specification table.
Product Description
S$ 3,141.15
(exc. GST)
S$ 3,423.85
(inc. GST)
UnitsDiscountUnit Price
1-S$ 3,141.15
Quantity:
EA
Lead time of 3 working days required.
Item will be ready to dispatch within the lead time specified.
