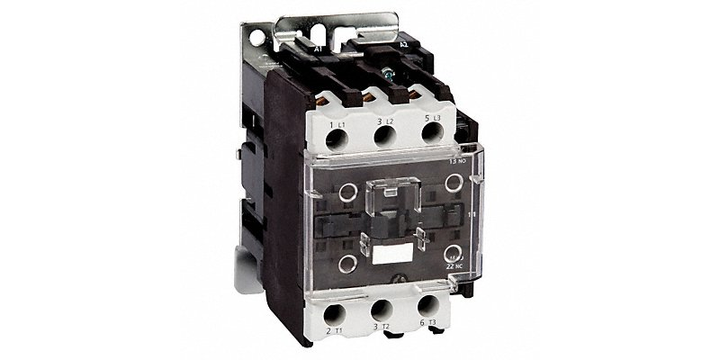

Dayton 6EAP7 H2454 Iecmagneticcontactor Nonreversing 24VAC
Specifications
Please select at least one specification below.
Pole Contact Composition
3NO
Poles Description
3
Terminal Type
Screw
Auxiliary Contacts Type
1NO/1NC
This spec is not available in the specification table.
Voltage Type
AC
This spec is not available in the specification table.
Full Load Current - Inductive
32 A
This spec is not available in the specification table.
Contactor Style
IEC
This spec is not available in the specification table.
Nominal Coil Voltage @ 60Hz
24V AC
This spec is not available in the specification table.
Embedded Surge Suppressor
No
This spec is not available in the specification table.
NEMA Enclosure Rating
No Enclosure
This spec is not available in the specification table.
Reversing Capability
Non-Reversing
This spec is not available in the specification table.
Horsepower @ Three Phase - 240V AC
10 hp
This spec is not available in the specification table.
Horsepower @ Three Phase - 480V AC
30 hp
This spec is not available in the specification table.
Horsepower @ Three Phase - 600V AC
30 hp
This spec is not available in the specification table.
Full Load Current - Resistive
60 A
This spec is not available in the specification table.
Product Description
S$ 399.73
(exc. GST)
S$ 435.71
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 399.73 |
Quantity:
EA
Lead time of 8 working days required.
Item will be ready to dispatch within the lead time specified.
