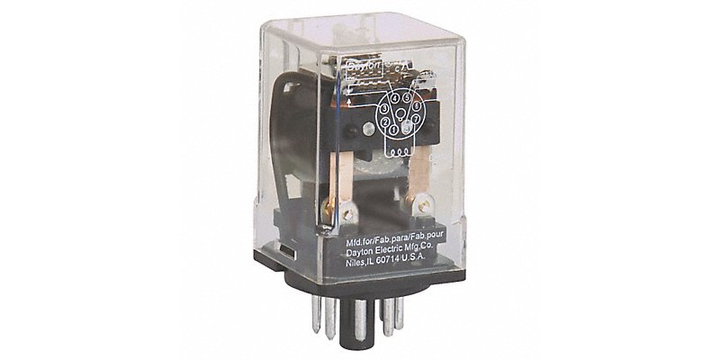

Dayton 5X826 H7954 General Purpose Relay 24VAC 10A 8Pins
Specifications
Please select at least one specification below.
Contact Material
Silver Alloy
Coil Voltage
24 V ac
Depth
1.4"
This spec is not available in the specification table.
Height
2.1"
This spec is not available in the specification table.
Width
1.4"
This spec is not available in the specification table.
Series Name
A Series
This spec is not available in the specification table.
Current Rating
10 A
This spec is not available in the specification table.
Contact Rating (DC)
10 A @ 28V
This spec is not available in the specification table.
Motor Rated
1/3 hp - 1/2 hp, Yes
This spec is not available in the specification table.
Status Indicator
Mechanical Flag
This spec is not available in the specification table.
Number of Pins
8
This spec is not available in the specification table.
Push-To-Test Button
No Test Button
This spec is not available in the specification table.
Contact Form
DPDT
This spec is not available in the specification table.
Contact Rating (AC)
10 A @ 277V
This spec is not available in the specification table.
Relay Mounting Style
Socket
This spec is not available in the specification table.
Socket Code
A
This spec is not available in the specification table.
Coil Voltage Type
AC
This spec is not available in the specification table.
Horsepower @ 120V AC
1/3 hp
This spec is not available in the specification table.
Horsepower @ 240V AC
1/2 hp
This spec is not available in the specification table.
Product Description
S$ 328.72
(exc. GST)
S$ 358.30
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 164.36 |
Quantity:
EA
MOQ of 2 EA
Bundle of 1 EA
Lead time of 8 working days required.
Item will be ready to dispatch within the lead time specified.
