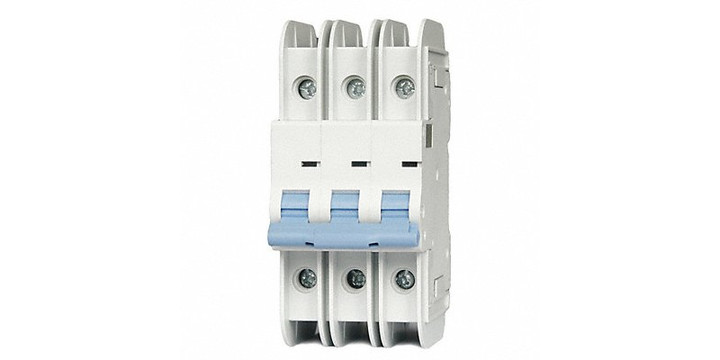

Dayton 33V893 Iec Mini Circuit Breaker 6A 3P 480Y/277V

DAYTON

View Brand

Dayton 33V893 Iec Mini Circuit Breaker 6A 3P 480Y/277V

Brand:	DAYTON
Model:	33V893

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Poles Description

Curve Code

Standards

UL Listed for US & Canada; CE

Connection - Terminals

Lug

Width

2.13"

Depth

Mounting Mode

DIN Rail

Series Name

NDB2T-63 C6/3 L

Length

4.01"

Rated AC Voltage

277/480 V AC

Rated DC Voltage

Not Rated

Max. AIR Rating

10 kA at 480 V AC

Phase

Meets UL Type

UL 489

Trip Type

Thermal Magnetic

Min Wire Size

59 AWG

Max Wire Size

75 AWG

Frame Size

32A/NDB2T

Circuit Breaker Actuator

Toggle

Product Description

S$ 177.00

(exc. GST)

S$ 192.93

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 177.00

Quantity:

Lead time of 8 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

SG-4667031604
