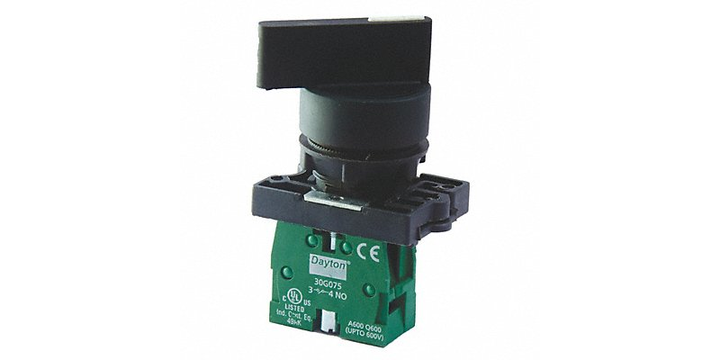

Dayton 30G266 Selector Switch Non-Illum 2 Pos 22 Mm

DAYTON

View Brand

Dayton 30G266 Selector Switch Non-Illum 2 Pos 22 Mm

Brand:	DAYTON
Model:	30G266

Specifications

View other Selector Switch dimensions or variations

Ip Degree Of Protection

IP65

[Ie] Rated Operational Current

10A @ 600V AC 2.5A @ 600DC NEMA

Contacts Type And Composition

1NO

Nema Degree Of Protection

2, 3, 1, 4, 4X

Bezel Material

Non-Metallic

Head Type

Extended Lever

Illuminated

Non-Illuminated

Cutout Diameter

22 mm

Number of Positions

Cam

No Cam Included

Switch Function @ 4th Position

No Fourth Position

Switch Action

Maintained/Maintained

Switch Function @ 3rd Position

No Third Position

Switch Function @ 1st Position

Off

Switch Function @ 2nd Position

Contact Rating Designation

A600/Q600

Bezel Color

Silver

Product Description

S$ 44.02

(exc. GST)

S$ 47.98

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 44.02

Quantity:

Lead time of 3 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

SG-4667031604

Shop by Specification Table

You can find items with similar specifications from the table below.

Selector Switch

73 Items

Width

59 mm, 45 mm, 87 mm, 49 mm, 77 mm

Depth

100.5 mm, 88 mm, 120.5 mm, 110.5 mm, 50 mm

Standards

IEC 60947-5-5 JIS C8201-5-1 IEC 60947-1 UL 508 IEC 60947-5-1 JIS C 852 CSA C22.2 No 14 JIS C8201-1, IEC 60947-5-1 CSA C22.2 No 14 JIS C 852 UL 508 IEC 60947-1 IEC 60947-5-5 JIS C8201-5-1 JIS C8201-1, IEC 60204-32 UL 508 IEC 60947-5-1 CSA C22.2 No 14, CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60204-32 UL 508, IEC 60947-5-1 IEC 60204-32 UL 508 CSA C22.2 No 14

Connections - Terminals

Faston connectors, connection size: 2.8 x 0.5 mm, Quick Connect, Quick Connect, Solder Tag, Screw Clamp, Screw

Ip Degree Of Protection

IP66, IP67, IP69K, IP67, IP66, IP67, IP66, IP65

[Ie] Rated Operational Current

3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 10A @ 600V AC/DC NEMA, 10A @ 600V AC 2.5A @ 600V DC NEMA, 10A @ 600V AC NEMA, 10A @ 600V AC 2.5A @ 600DC NEMA

Contacts Type And Composition

2 NO, 1NO/1NC, 1NO, 2NO, 2NO/2NC
