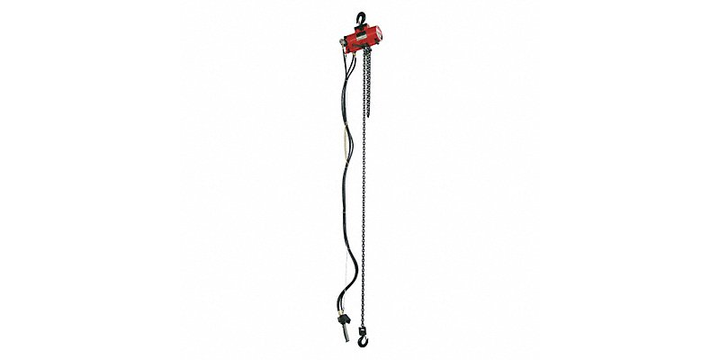

Dayton 29XL90 K9074 Air Chain Hoist 500 Lb.cap. 20 Ft.lift
Specifications
Please select at least one specification below.
Product Description
- Mount Type: Hook Mounted (No Trolley)
- Maximum Lifting Capacity: 500 lb
- Fixed Lift Speed: 65 feet per minute (fpm) — faster than the previous 500 lb hoist you mentioned (23 fpm)
- Air Inlet Type: NPT
- Controls: Pendant
- Minimum/Maximum Beam Flange Width: Not Applicable
- Headroom: 15 1/4 in — slightly less than the 18 in headroom of the other model
- Maximum Air Pressure: 90 psi
- Maximum Lifting Length: 20 ft
- Maximum Air Consumption: 48 scfm
- Air Inlet Gender: Female
- Air Inlet Size: 3/8 in
- Body Dimensions:
- Depth: 10 in
- Length: 12 1/8 in
- Width: 10 3/16 in
- Body Material: Cast Aluminum
S$ 5,026.35
(exc. GST)
S$ 5,478.72
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 5,026.35 |
Quantity:
EA
Lead time of 8 working days required.
Item will be ready to dispatch within the lead time specified.
