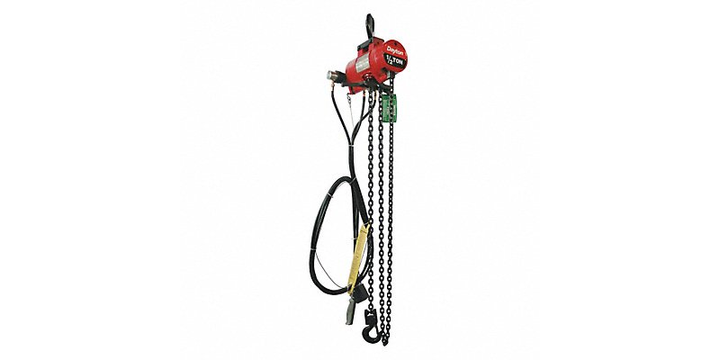

Dayton 29XL86 K9138 Air Chain Hoist 1000 Lb.cap. 10 Ft.lift

Dayton 29XL86 K9138 Air Chain Hoist 1000 Lb.cap. 10 Ft.lift

Brand:	DAYTON
Model:	29XL86

Specifications

View other Winches, Hoists & Spring Balancers dimensions or variations

Product Description

Mount Type: Hook Mounted (No Trolley)
Maximum Lifting Capacity: 1,000 lb
Fixed Lift Speed: 45 feet per minute (fpm)
Air Inlet Type: NPT
Controls: Pendant
Minimum/Maximum Beam Flange Width: Not Applicable
Headroom: 15 1/4 in
Maximum Air Pressure: 90 psi
Maximum Lifting Length: 10 ft
Maximum Air Consumption: 48 scfm
Air Inlet Gender: Female
Air Inlet Size: 3/8 in
Body Dimensions:

Depth: 10 in
Length: 12 1/8 in
Width: 10 3/16 in

Body Material: Cast Aluminum

S$ 5,927.06

(exc. GST)

S$ 6,460.50

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 5,927.06

Quantity:

EA

Lead time of 8 working days required.

Item will be ready to dispatch within the lead time specified.
