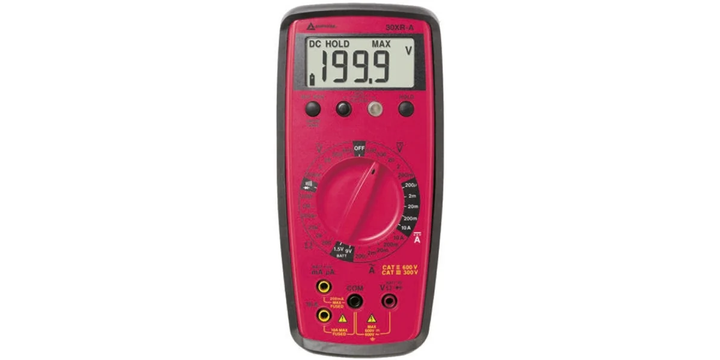

Amprobe 30XR-A Handheld Digital Multimeter, 10A Ac Max, 10A Dc Max, 600V Ac Max

The Amprobe 30XR-A is a manual ranging digital multimeter with a non-contact voltage detector and the ability to test batteries under load. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient, the 30XR-A is designed for field service technicians. The meter includes a Cat II 600 V, Cat III 300 V safety rating.

The 30XR-A includes the features and functions needed for a wide range of applications. The meter measures AC and DC voltage to 600 V, AC and DC current to 10 A, and resistance to 20 MΩ. Additionally, 30XR-A multimeters have a continuity beeper, diode test, and overload protection. All measurements have wide testing ranges and high accuracy. The battery test function allows 1.5 and 9 V batteries to be tested under load. Testing results are displayed on the 3-1/2 digit LCD. The Amprobe 30XR-A digital multimeter also includes Min/Max and Data Hold functions as well as a separate door for battery and fuse access.

Features and Benefits

• AC/DC Voltage Ranges: 200 mV, 2 V, 20 V, 200 V, 600 V
• AC/DC Voltage Accuracy: ±(1.0 % rdg + 1 dgt) DC; ± (1.5 % rdg + 4 dgts) AC
• AC/DC Current Ranges: 400 μA, 4 mA, 40 mA, 300 mA, 10 A
• AC/DC Current Accuracy: up to ±(1.5 % rdg + 1 dgt) DC; ±(2.0 % rdg + 4 dgts) AC
• Resistance Ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ
• Resistance Accuracy: up to ±(1.0 % rdg + 4 dgts)
• Non-contact voltage detector: 70 to 600 VAC
• Continuity: Audible Indication < 75 Ω
• Battery Test, Diode Test, Overload Protection
• 3-1/2 digit LCD
• Cat II 600 V, Cat III 300 V safety rating
• UL Listed

Supplied with

• Test leads with threaded alligator clips (TL36A)
• 9 V battery
• Magne-Grip holster w/magnetic hanging strap (H2-XRA)
• Spare fuse
• Manual
