3M 567 Connector Idc Brown
Brand:
3M
Model:
567
Product Description

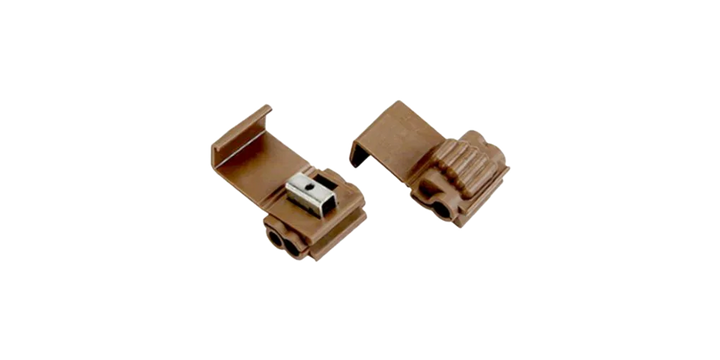

3M 567 Connector Idc Brown 567

3M™ Scotchlok™ Insulation Displacement Connector 567 electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.

Highlights
  • Brown polypropylene-insulated connector
  • Suitable for general purpose electrical connections on an auto, boat, van or trailer
  • Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Typical Properties

Brands: Scotchlok™

CSA File Number: LR15503, LR32411

Connection Type: Run & Tap

Connector / Connector Tool: 3M Crimping Tool E-9BM and/or 9" Lineman's Pliers

Connector Style: Insulation Displacement

Flame Retardant: Yes

Grease Filling Against Corrosion: Yes

Insulation Color: Brown

Insulation Material: Polypropylene

Interrupt Free Shifting: No

Material: Insulator: FR Polypropylene, U-contact: Tin-plated Brass

Max. Number of Cores: 2

Maximum Operating Temperature (Celsius): 105 ℃

Maximum Recommended Voltage Rating: 600 V

Moisture Resistant: No

Package Quantity: 1000

Product Color: Brown

Product Type: Run & Tap

Recommended Crimping Tool: E-9BM or 9 in. Linemans Pliers

Run Maximum Insulation Outer Diameter (Metric): 4.8 mm

Tap Maximum Insulation Outer Diameter (Metric): 4.8 mm

UL File Number: E23438

Units per Case: 250.0

Voltage Application: Low Voltage

S$ 0.75
(exc. GST)
S$ 0.82
(inc. GST)
Quantity:
EA
Stock:
468 EA in stock
